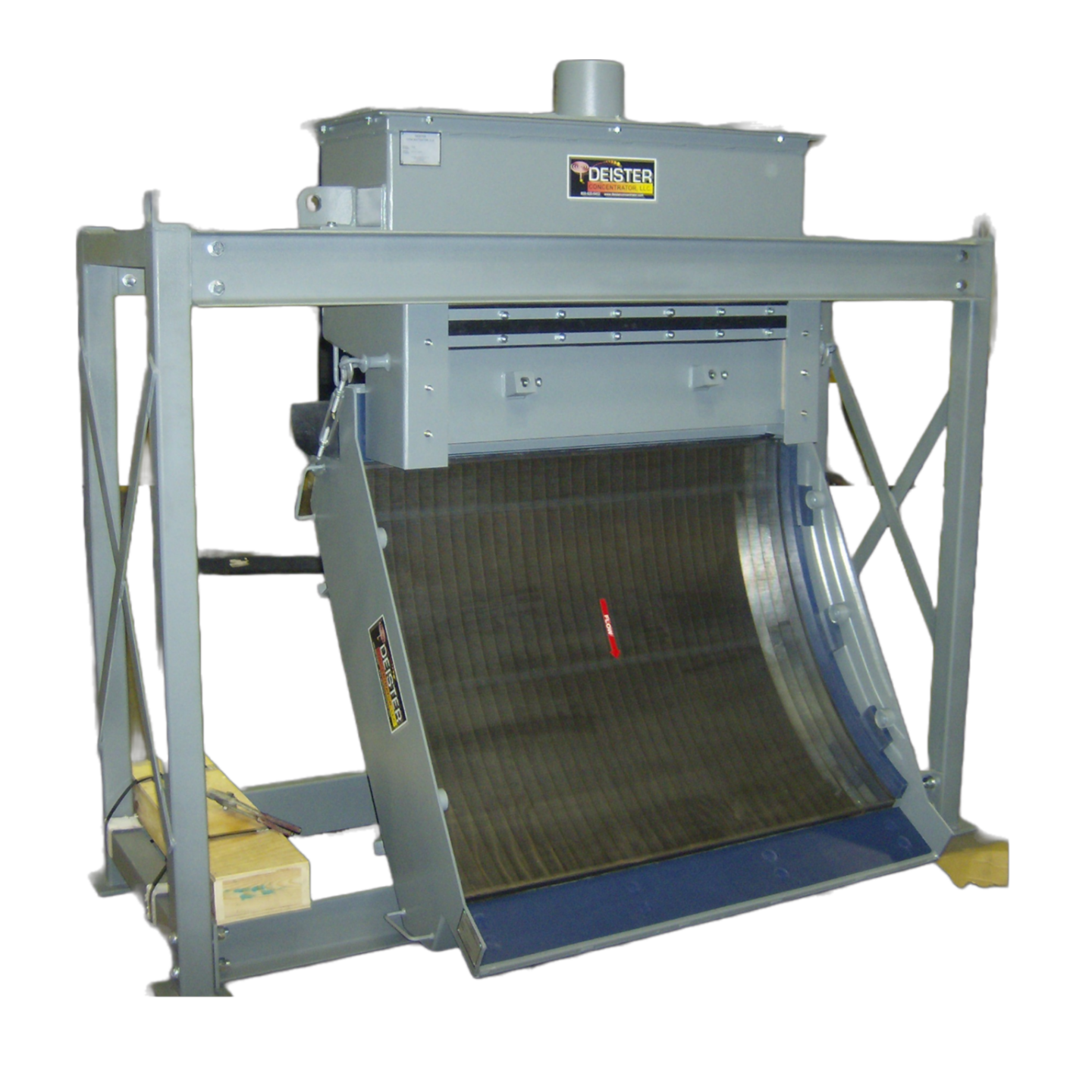

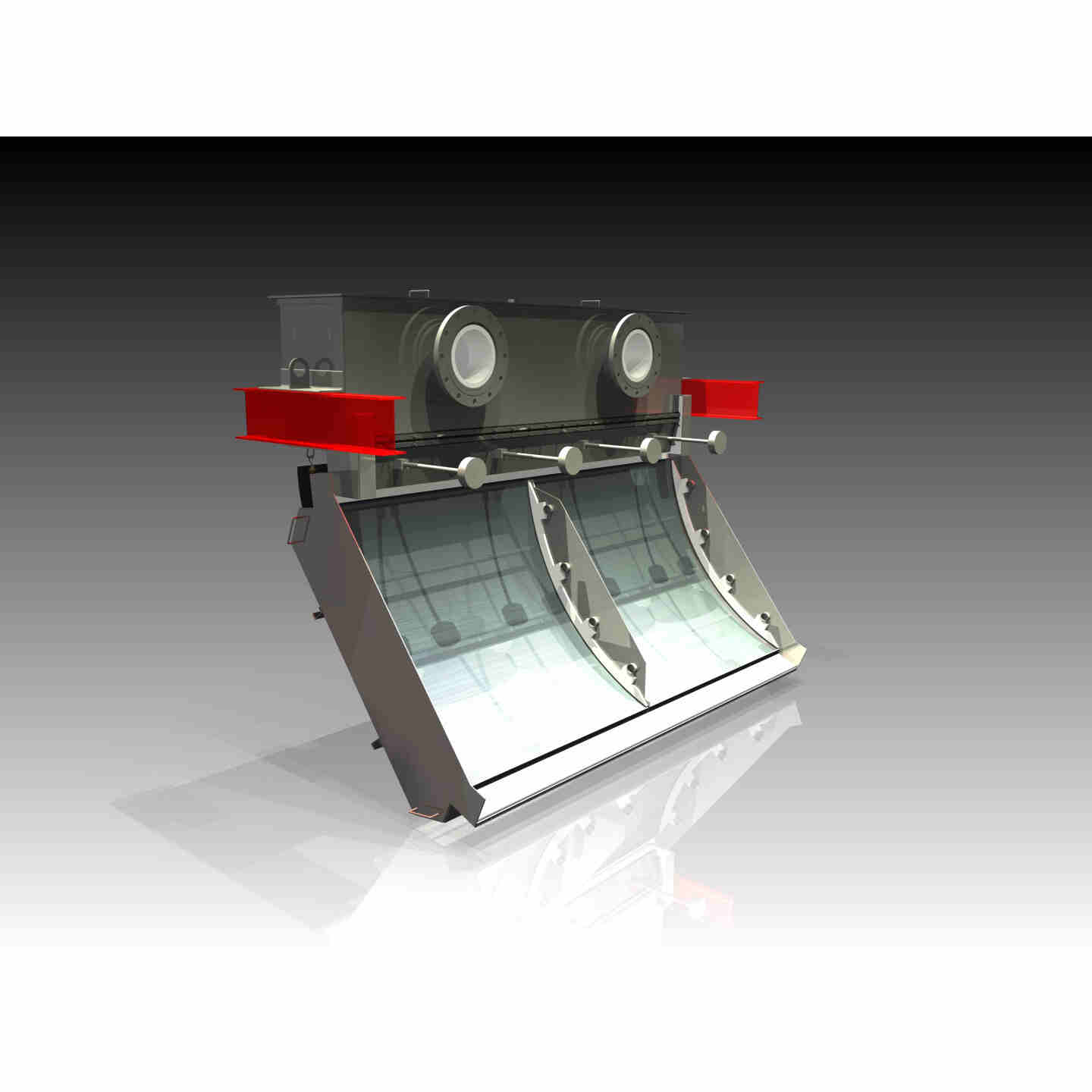

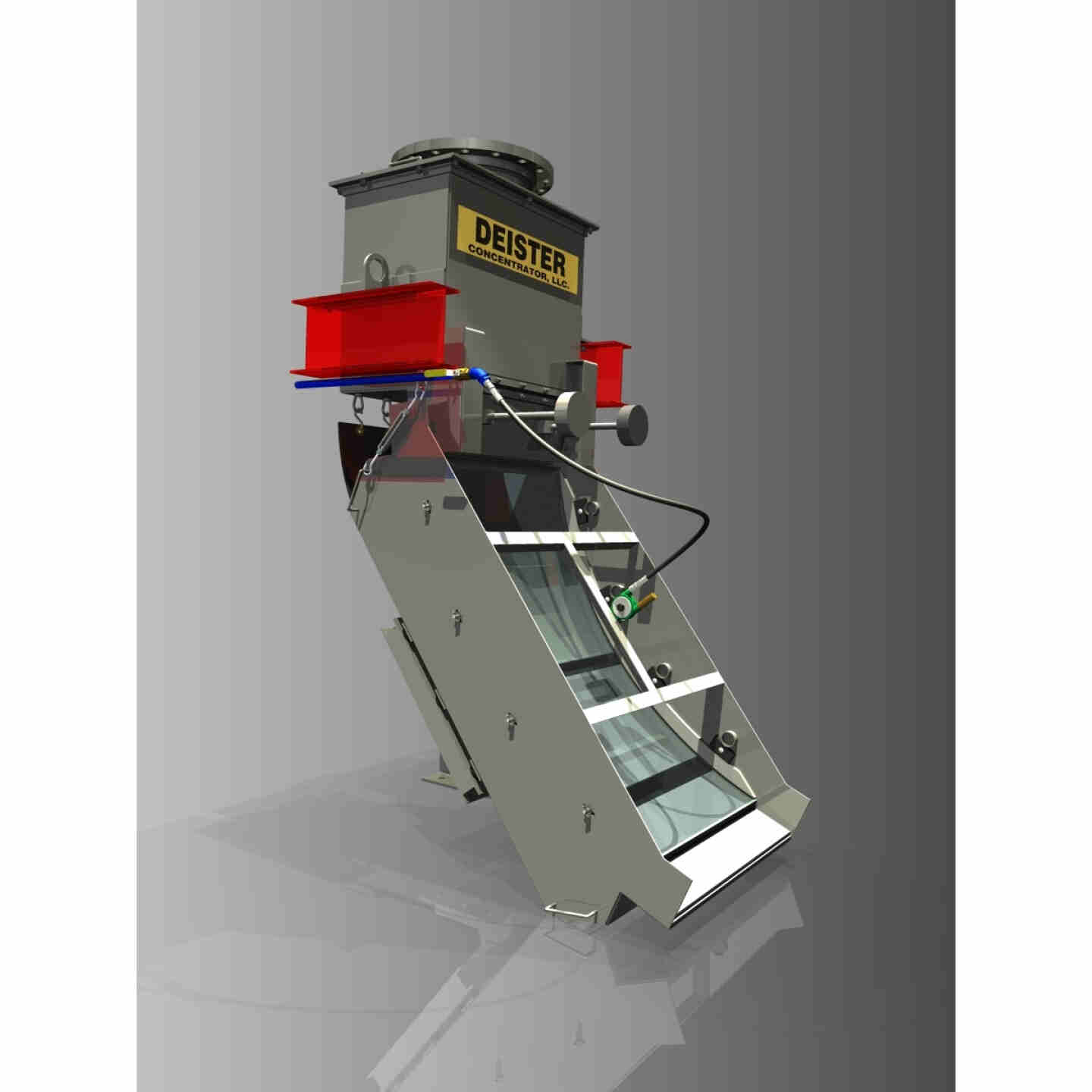

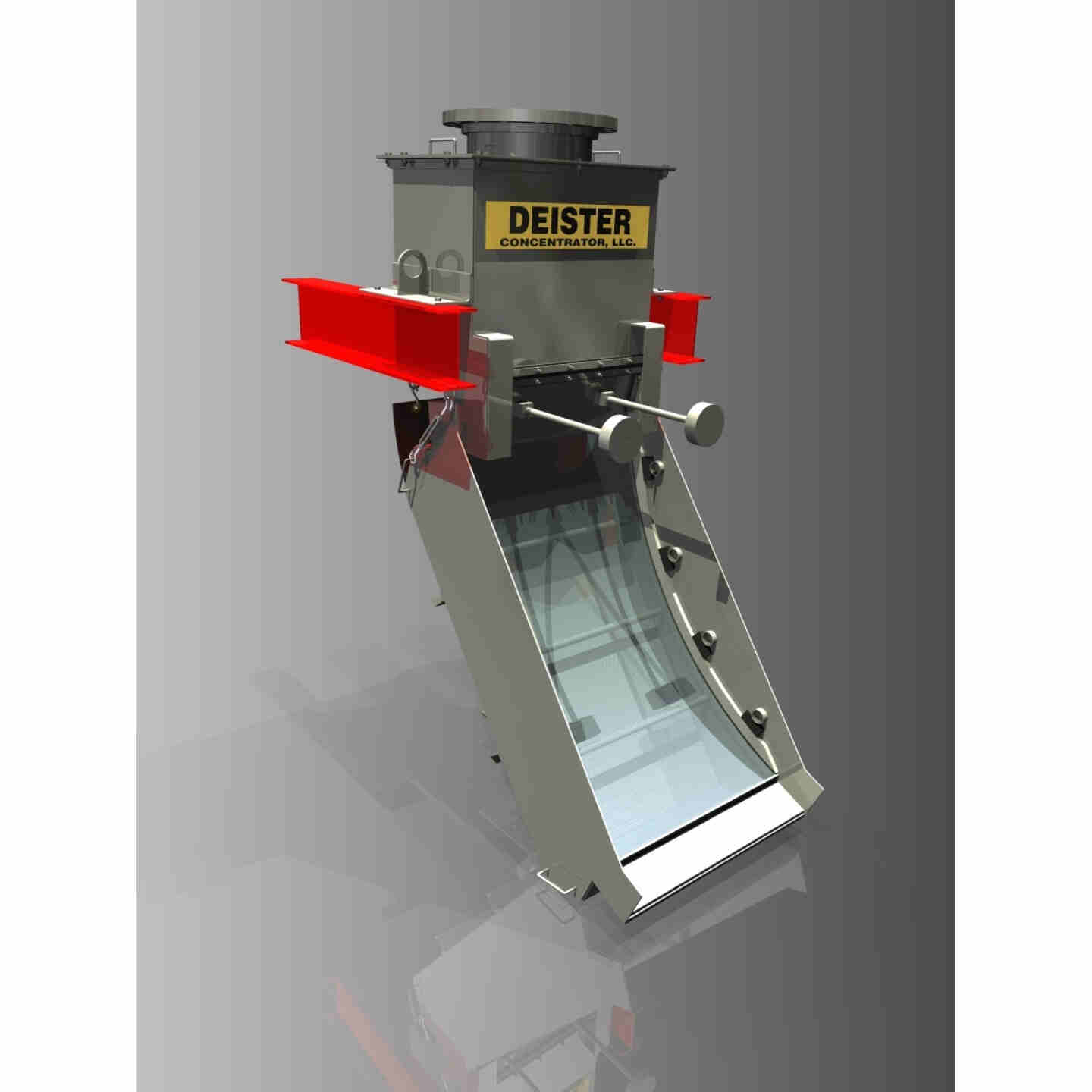

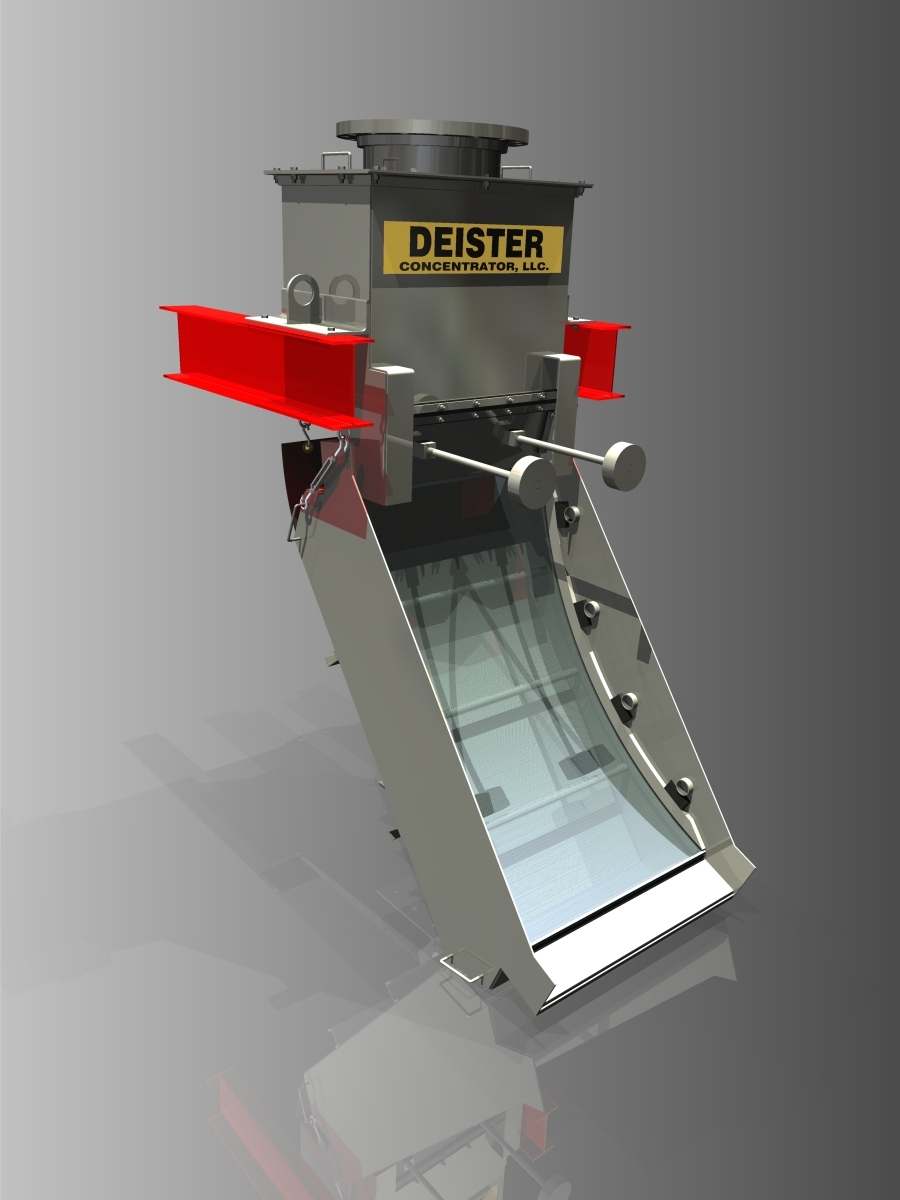

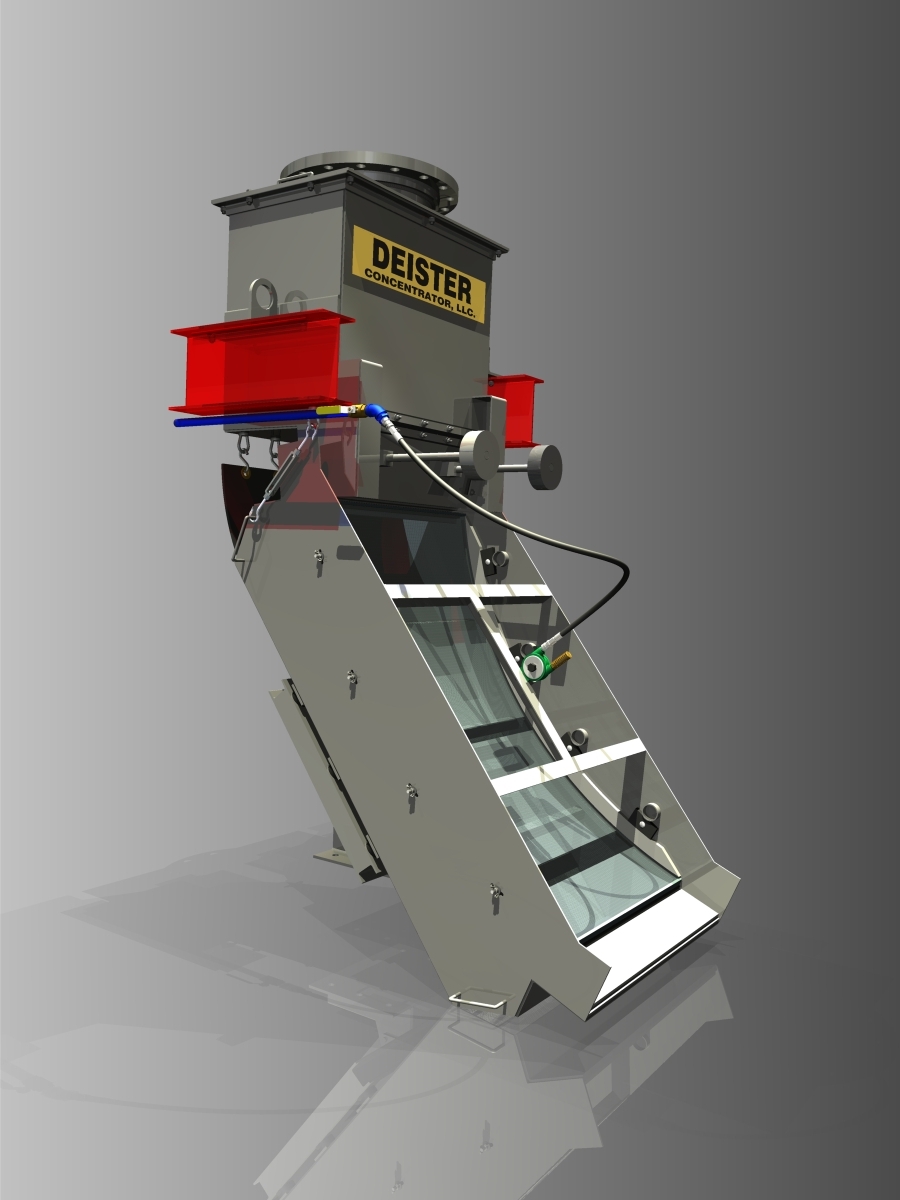

Sieve Bend
The Deister Sieve Bend classifies or dewaters feed to vibrating screens and improves the screen's efficiency. It also allows for pre-drainage ahead of the drain-and-rinse screen in a heavy media cyclone circuit.
The reversible turning ability of the Deister Sieve Bend promotes longer screen life. This in turn means lower overall cost savings for the customer.
The Deister designed feed boxes allow for full-width feeding which maximizes capacity and efficiency.
Sieve Bend
The Deister Sieve Bend classifies or dewaters feed to vibrating screens and improves the screen's efficiency. It also allows for pre-drainage ahead of the drain-and-rinse screen in a heavy media cyclone circuit.
The reversible turning ability of the Deister Sieve Bend promotes longer screen life. This in turn means lower overall cost savings for the customer.
The Deister designed feed boxes allow for full-width feeding which maximizes capacity and efficiency.
- Reverse-turning floor mount or suspended units available
- A wide variety of sizes and screen panels available
- 30", 40", 61 3/8", and 80" radiuses available
- 45 and 60 degree arcs available
- Widths range from 2' to 10'
- Improves efficiency of vibrating screens immediately downstream
- Standard and Sluice Type Feed Boxes available
- Feed Boxes can be lined with 0.5 inch to 1.0 inch thick ceramic tile
- Effluent Box feed & discharge lips can be lined with ceramic tile
